EAS AM

The AM product line consists AM label, hard tags and systems. Find out more about our range and their advantages.

Labels

AM label for different applications.
Standard, with foam, with a plastic pouch or drop in.

learn more

Hard Tags

The most secure AM security solution are hard tags. We offer hard tags in different sizes, shapes, colours with different performance and applications.

learn more

Hardware

Check out our new AM antenna range with the new AM Uranus 400 with a full plexi frame and the AM Saturn 400 P with a white ABS profile.

learn more

Showcases

We offer a wide range of RFID hardware, inlays, customized labels, systems, software and cloud solutions for every purpose and enviroment. We will consult you from the beginning to the end and develop a customized strategy for your products.

learn more

EAS AM – Hard Tags

Intelligent anti theft and display hard tags.

We offer a wide variety of AM hard tags for different applications, mainly for textiles, shoes and bottles. They come in different forms and sizes to fit the given requirements.

Hard Tags are a reliable more secure anti-theft solution than paper hang tags or sew in label. They are easy to apply, with good performance and are reusable. The most common hard tags consist the hard tag itself and a pin to secure the tag to the product.

Alternatively a lanyard in different lengths can be used when a pin is more difficult to use. E.g. on shoes a hard tag with lanyard is more easy to apply than a pin. But there are also other hard tags such as bottle tags.

An AM hard Tag is a visible and more secure ani-theft device than paper hang tags or sew in label. It consists a thermoplastic resin housing with a pin or lanyard,  there are also bottle tags.

Hard tags are simple to use. If the hard tag has a pin or lanyard just insert the needle into the hole of the hard tag body. The pin will lock at once. To unlock the pin you need to use a magnetic detacher. Bottletags have a lock mechanism depending on the model type. A bottle tag will also be unlocked with a magnetic  detacher.

  • Good performance

  • Reusable

  • Most secure solution

  • Deterrent effect

AM Mega Tag

73x15x14 mm

The Mega Tag: Extremely good detection and high class power ferrite. Smooth crimping correction of pin with lanyard – easy to apply. In beautiful colors, it is best suited for accessories & shoes.

Pin version RF: 73 x 15 x 14 mm
Lanyard version RF: 73 x 15 x 14 mm 155 x 15 x 14 mm with lanyard
90 mm length of lanyard with pin

Color: Black for RF

AM Mini Pencil Tag

With Lanyard

Very small hard tag. Visually not so obvious and prominent like bigger hard tags. Also used when a little less performance is preferable.

Tag Size: 46x13x18mm
Ferrite Size: 25x4mm
Color: Light grey
Frequency: 58 Khz

Multi AM Bottle Tag

For All Kinds Of Bottles

One of the best one hand usage bottle tag solutions. With quick and easy handling. Very flexible for many bottle necks , available in 2 sizes.

Tag Size:

Color: Transparent

AM Soft Package

Hard Tag

Extra safe lock with metal claws for thicker material bags.
• Easy opening and closure

Tag Size:
Color: Black

AM Bottle Tag

Flexible Handling

Very flexible bottle tag for every bottle necks. Independently from the top cap size. Light weight tag for easy and fast application.

Tag Size:

Color: Grey

DATASHEET PDF DOWNLOAD
AM Mega Tag 73x15x14  Download
AM Mini Pencil Tag 45×19  Download
AM Mini Pencil Tag with lanyard 44×13  Download
AM Super Pencil Tag excl. pin 62×20  Download
.
AM Pencil Tag 55mm  Download
AM Mini Pencil Tag 51mm  Download
AM Mini Pencil Tag with lanyard 46mm  Download
AM Rambo Tag 68mm  Download
DATASHEET – PINS PDF DOWNLOAD
Pin for Mega Tag Dome Pin 15mm  Download
Pin for Mini Square 16mm  Download
Pin for Mini Tag Swivel flat head 19mm  Download
Pin Swivel head 16mm  Download

EAS AM – Labels

We offer AM label for different applications as standard, with foam, in a plastic pouch or with a larger selfadhesive area.

AM label offer excellent detection performance with a longer transmitting range than RF systems. They have a slim design and are well suited for cosmetic products.

AM Label are made of magnetiostrictive ferromagnetic amorphous metal strip and magnetic strip inside . On the outside is a plastic housing with dummy barcode an a selfadhesive on the bottom.

They can de delivered on sheets for hand application or on large roll format for automatic application. Due to the selfadhesive on the back, they can be easily attached to any product. In combination with our Am antenna system you have an effective anti-shoplifting system.

  • Slim size

  • Very good detection performance

  • Excellent anti-metal performance

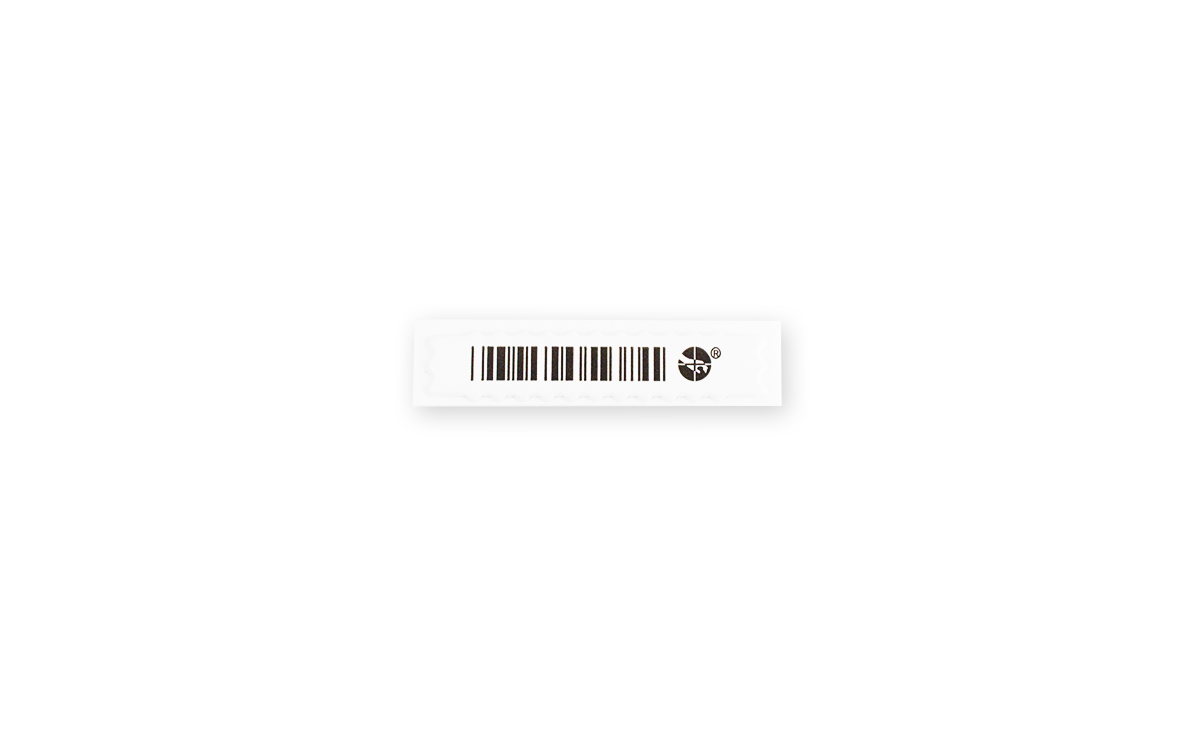

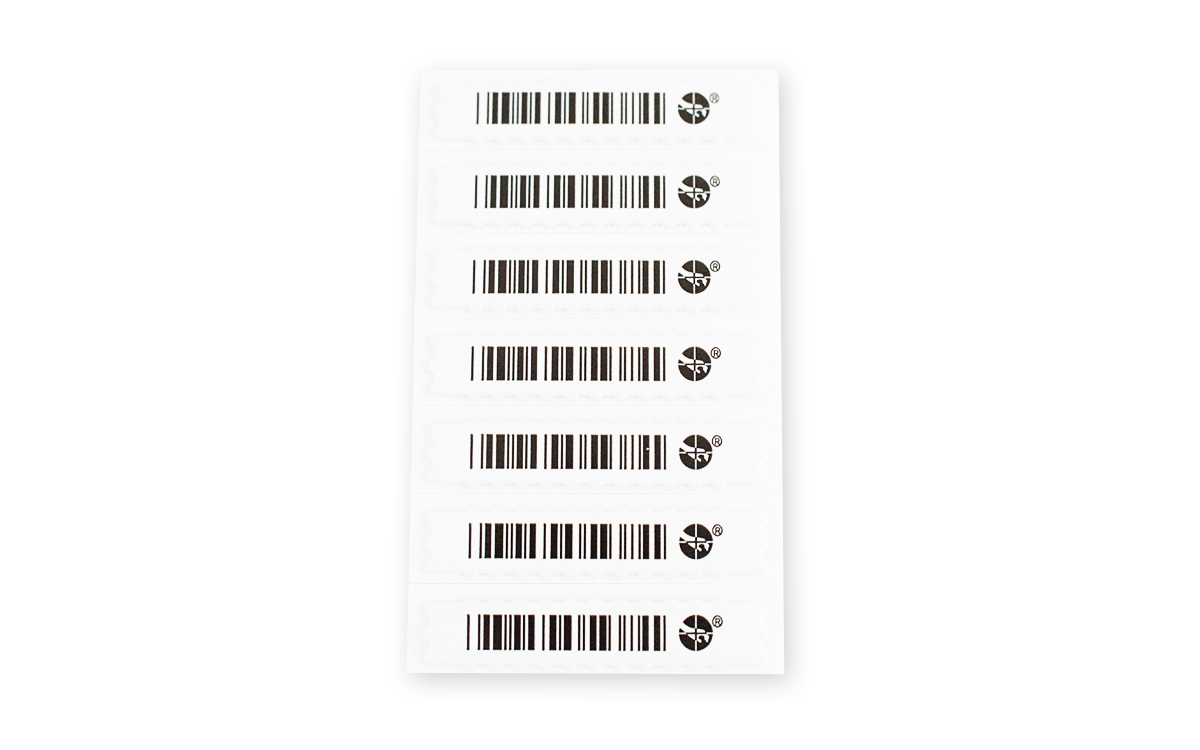

AM  Label

Standard

  • EAS AM Tag
  • EAS AM Tags

Standard AM label with dummy barcode and selfadhesive on the bottom for easy application.

Tag Size:  45,21 +/-0,5mm x 10,67 +/- 0,5mm

Colour: White and black

Version: Deactivatable

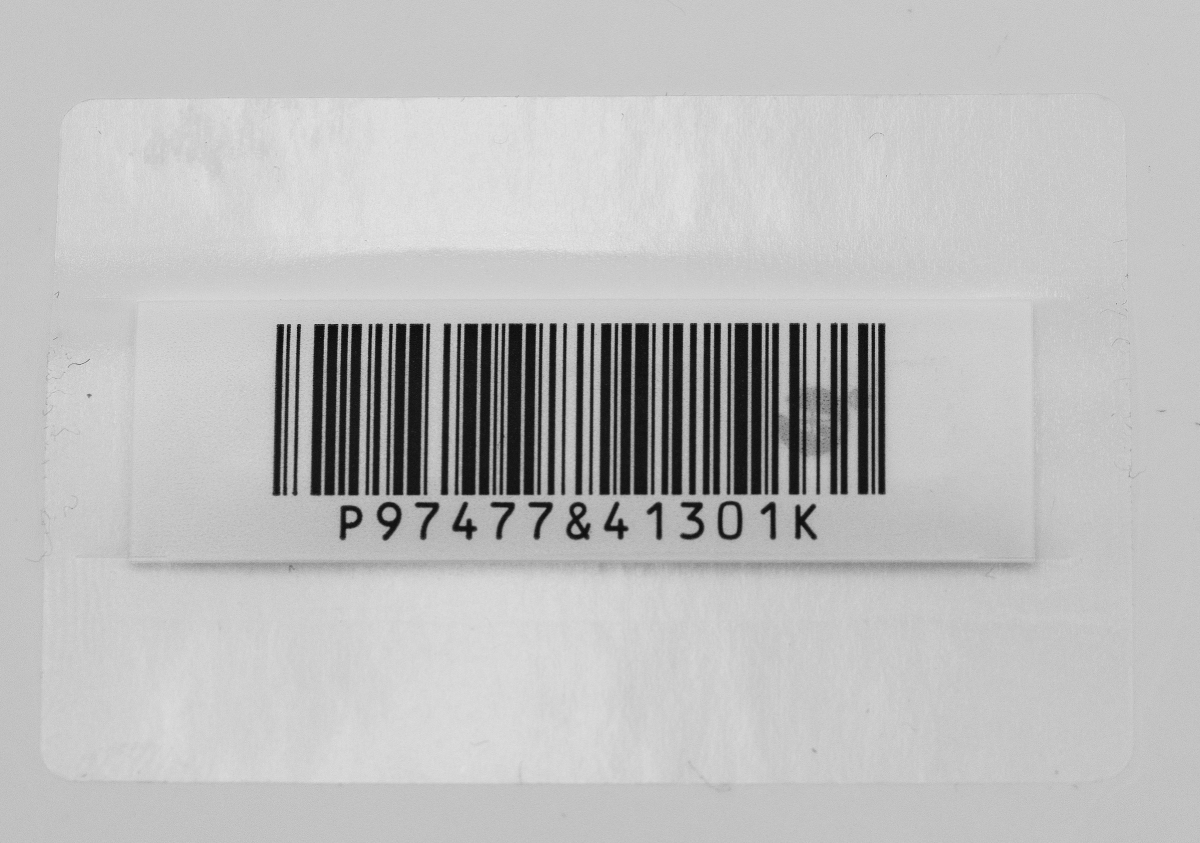

AM Bottle Label

60×40 mm

AM bottle label with larger surface area than standard AM label. Easy & fast to apply selfadhesive label. For hand application.

Tag Size:  60×40 mm

Colour: Dummy barcode or customized

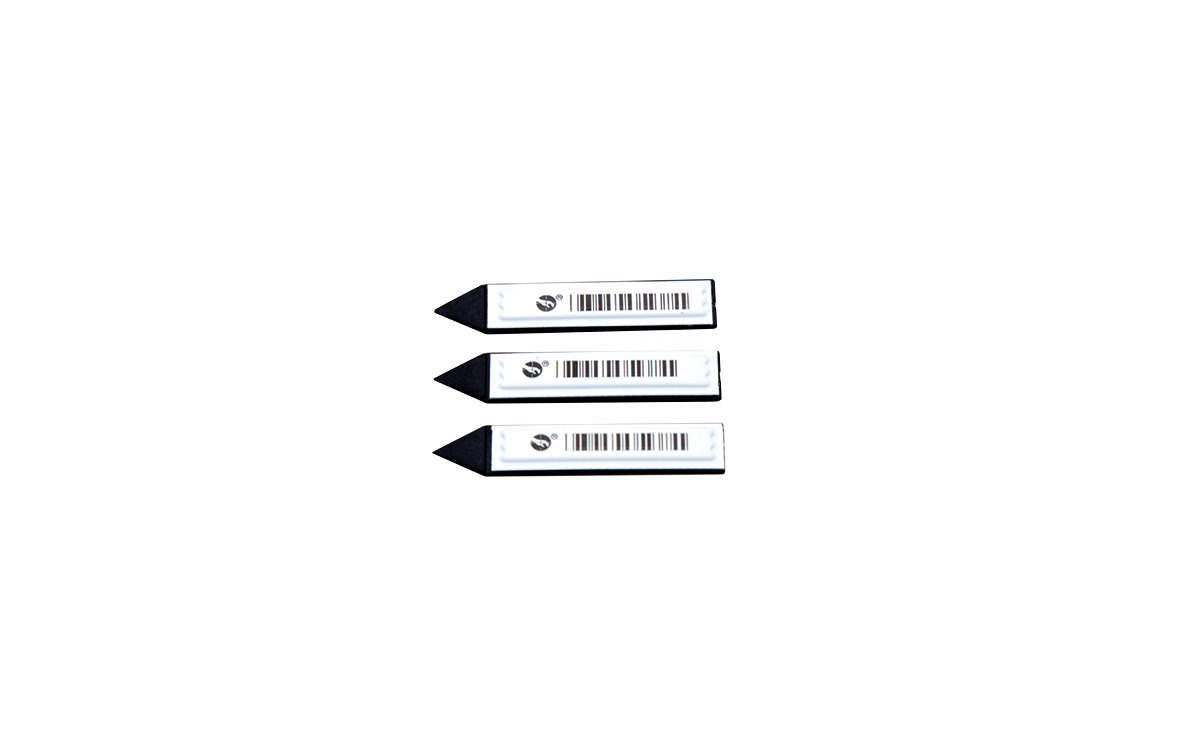

AM Drop In Label

Sharp Tip

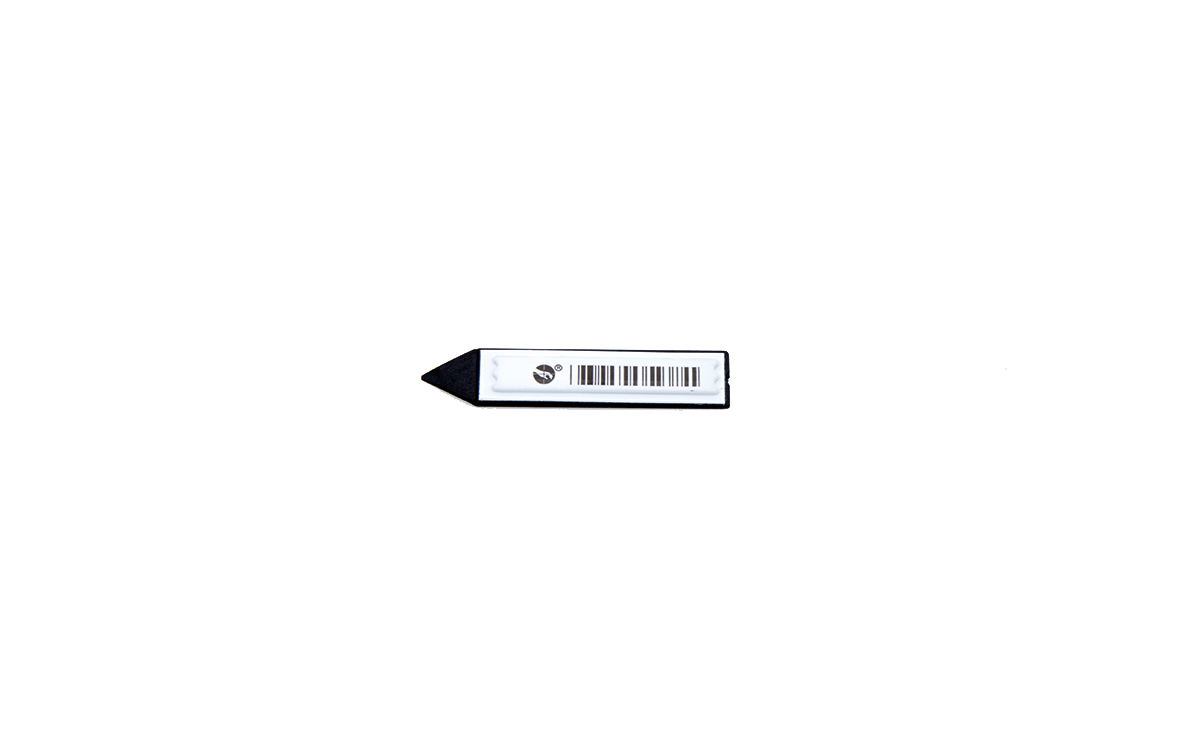

  • AM Insertable Label
  • AM Insertable Labels

AM drop in label with a sharp and rigid tip for easy drop in application even through thikcer plastic foil.

Tag Size:  57×12 mm

Colour: White and black

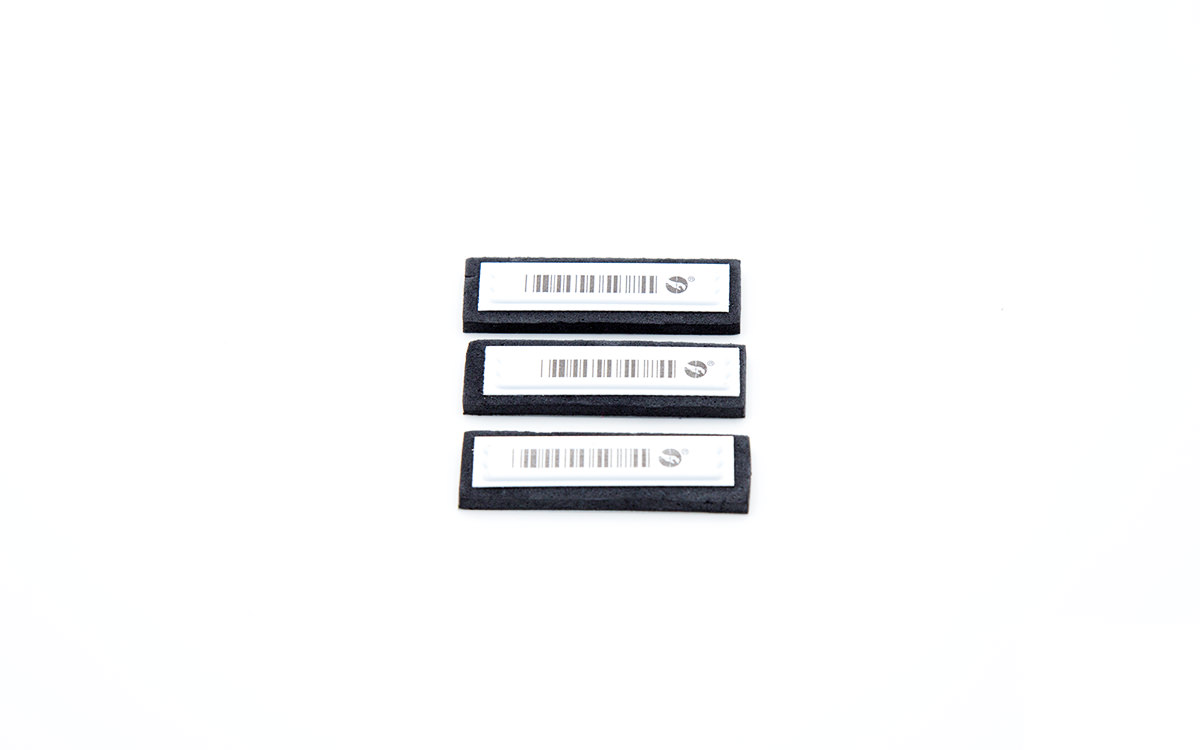

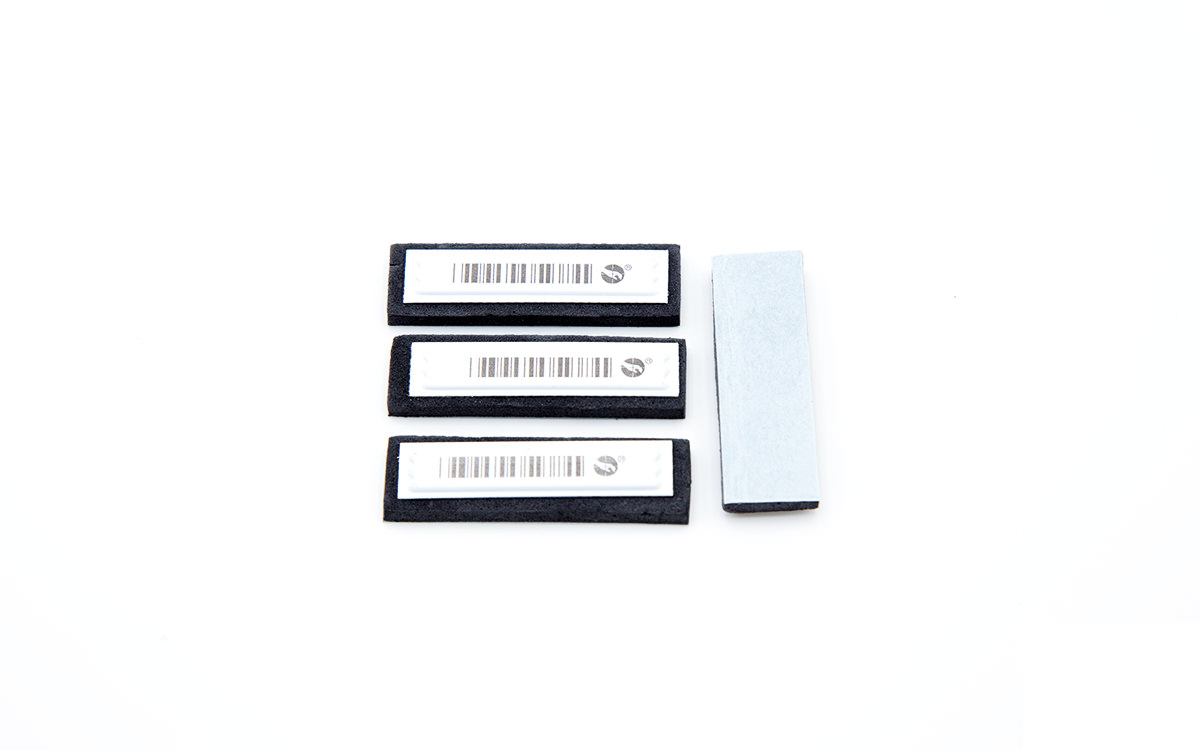

AM On Metal Label

Foam

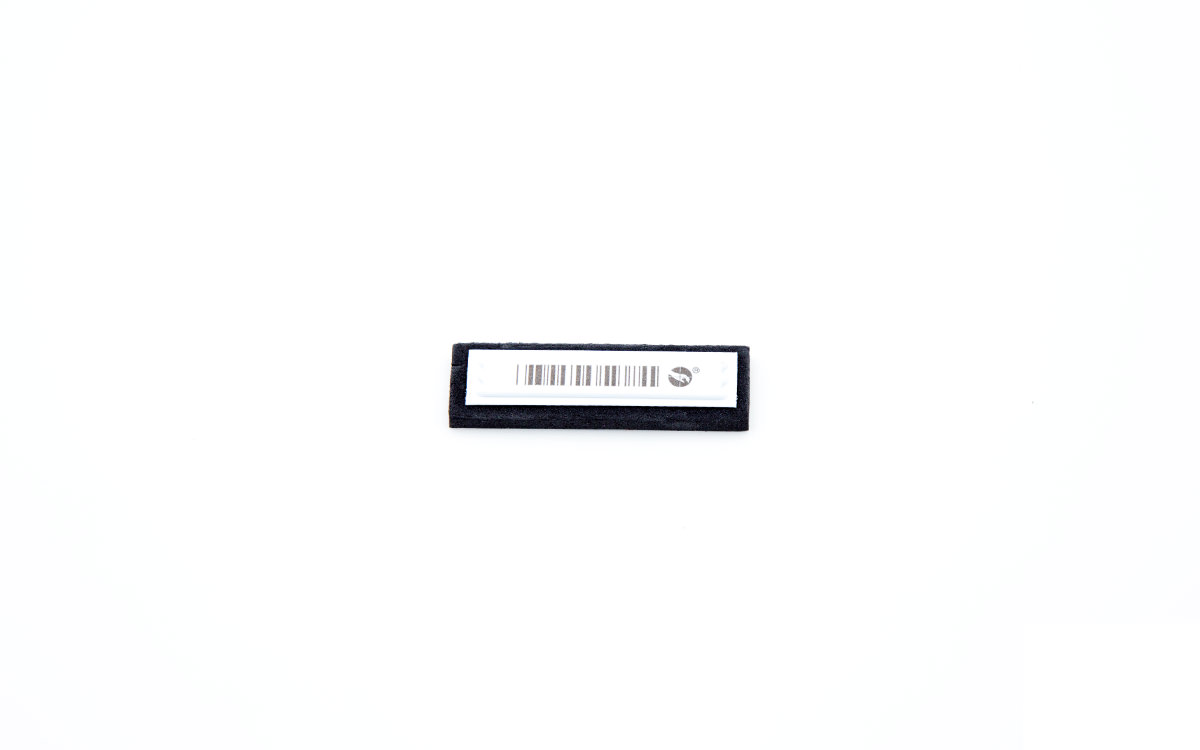

  • AM On Metal Tags Foam

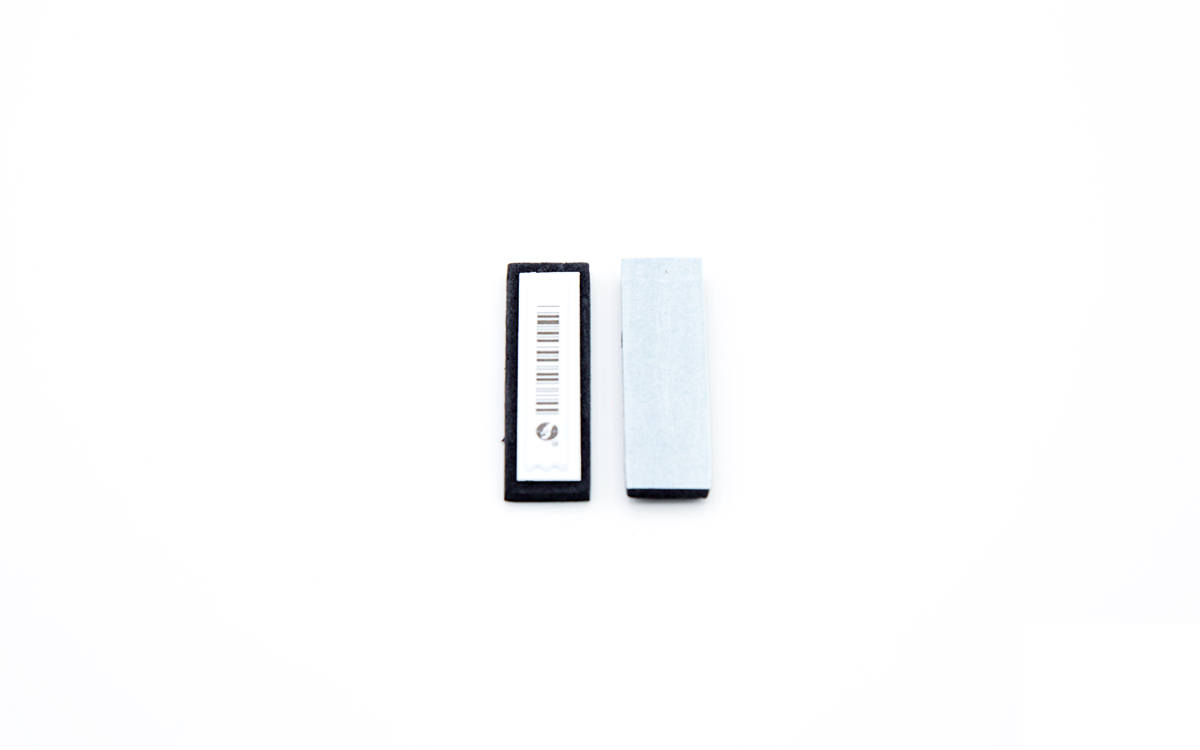

  • AM On Metal Tags Foam Front & Back
  • AM On Metal Tags Foam Front

AM on metal label for metal surfaces and liquids. With foam material with selfadhesive underneath the AM label.

Tag Size: 15 x 50 mm  +/- 2mm

3,5mm height ( plus DR label height)

Colour: White and black

AM Sew In Label

Polyester Satin

  • EAS AM Tags
  • EAS AM Tag

AM sew in label for source tagging applications.

Label Size:

Colour: White and black

AM Paper Hang Tags

Customized

  • Paper Hang Tag

AM customized paper hang tags. Slightly thicker than RF or RFId hang tags due to the thicker AM Label.

Label Size:

Colour: White and black

EAS AM – Systems

Brand new design.

RAKO‘s brand new AM system has been developed with careful consideration of the current market needs and trends. The system allows for a universal configuration that enables optimization of the installation cost and number of antennas needed to secure the store.

EAS AM – Systems

Our main board consist of a TX part and includes in total three receiver slots. You can combine a TRX (MONO) with up to two additional receivers or you can set the system to a TXRX mode to achieve a DUAL functionality.

The system is ready to be used with our RAKO SPHERE online platform in order to provide you with full remote tuning functionality.

The remote tuning concept allows mainly for service purposes.

An EAS system consists one mono antenna as stand alone or several dual antennas to complement each other. Just plug them in, and they are ready to go.

Acousto-magnetic EAS systems use a transmitter to create a surveillance area where tags and labels are detected. The transmitter sends a radio frequency signal at a frequency of  58 KHz (thousand of cycles per second), but the frequency is sent in pulses. The transmit signal energizes a tag in the surveillance zone. When the transmit signal pulse ends, the tag responds, emitting a single frequency signal like a tuning fork. The tag signal is at about the same frequency as the transmitter signal.

While the transmitter is often between pulses, the tag signal is detected by a receiver. A microcomputer checks the tag signal detected by the receiver to ensure it is at the right frequency, occurs in time synchronized to the transmitter , at the proper level, and at the correct repetition rate. If the criteria is met, an alarm occurs.

The antennas just need power supply and you are ready to go. The antennas have a predefined setting ex works. Depending on the store enviroment or possible interferences from other stores they can be also fine tuned to the desired performance.

  • Reliable system

  • Long range signal

  • Easy and fast integration

  • Good performance

AM Uranus 400

Full Plexi System

Our new full plexi antenna system for an unobstrusive appearence at the shop entrance.

Height: 1550 mm
Width: 400 mm
Thickness: 20 mm
Base thickness: 135 mm

PSU + 2 Receiver antenna configuration
TRX separated from antenna; 2x 24VAC
Center Frequency 58 KHz
Consumption 0,5A/48 W
Remote tuning ready via RAKO SPHERE
TX RX Configuration*

DR label up to 2.10 m
Super Tag up to 2.15 m
Ferrite Tag up to 2.50 m

TRX Configuration*

DR label up to 1.05 m
Super Tag up to 1.10 m
Ferrite Tag up to 1.25 m

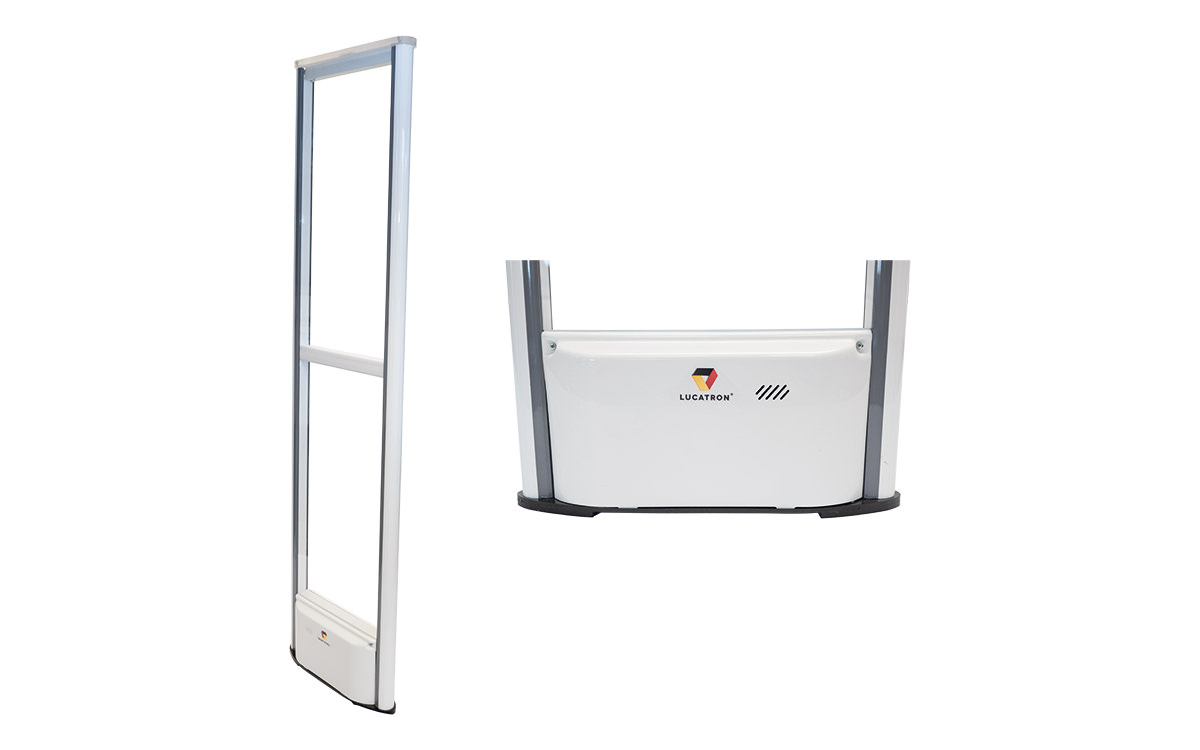

AM Saturn 400 P

White Abs Profile System

Take advantage of our new ABS frame design and use it with your advertisement.

Height: 1560 mm
Width: 408 mm
Thickness: 45 mm
Base thickness: 109 mm

PSU + 2 Receiver antenna configuration
TRX separated from antenna; 2x 24VAC
Center Frequency 58 KHz
Consumption 0,5A/48 W
Remote tuning ready via RAKO SPHERE

TX RX Configuration*
DR label up to 2.10 m
Super Tag up to 2.15 m
Ferrite Tag up to 2.50 m

TRX Configuration*
DR label up to 1.05 m
Super Tag up to 1.10 m
Ferrite Tag up to 1.25 m

*system performance is subject to quality of used consumables and calculated average of various tag and label positions.

EAS – AM.

 The AM product line consists AM label, hard tags and systems. Find out more about our range and their advantages.

Acousto Magnetic – AM is a traditional retail security technologie. It transmit 50-90 pulses per second at 58 kHz. It is a very reliable system with a long range signal. We offer customized AM label for every enviroment and application.

We also have a wide range of hard tags and AM antenna systems.

Acousto-magnetic EAS systems use a transmitter to create a surveillance area where tags and labels are detected. The transmitter sends a radio frequency signal at a frequency of  58 KHz (thousand of cycles per second), but the frequency is sent in pulses. The transmit signal energizes a tag in the surveillance zone. When the transmit signal pulse ends, the tag responds, emitting a single frequency signal like a tuning fork. The tag signal is at about the same frequency as the transmitter signal.

While the transmitter is often between pulses, the tag signal is detected by a receiver. A microcomputer checks the tag signal detected by the receiver to ensure it is at the right frequency, occurs in time synchronized to the transmitter , at the proper level, and at the correct repetition rate. If the criteria is met, an alarm occurs

In order to use AM, you need AM label or tags and an AM antenna system which has to be connected to a power connection.   The frequency is always at 58 kHz. To unlock a hard tag or bottle tag a magnetic detacher is neede.

  • Reliable system

  • more range than RF systems

  • Inexpensive compared to RFID systems

HARD TAG

The most secure AM security solution are hard tags. We offer hard tags in different sizes, shapes, colours with different performance and applications.

LABEL

AM label for different applications.

Standard, with foam, with a plastic pouch or drop in.

SYSTEMS

Check out our new AM antenna range with the new AM Uranus 400 with a full plexi frame and the AM Saturn 400 P with a white ABS profile.
